Long Arm Upgrade Kit 4 Inch Lift Jeep Grand Cherokee ZJ 4WD 1993-1998

Description

Boasting some impressive features, the ZJ Longarm Kit is a comprehensive package including everything needed for a great suspension lift while maintaining the vehicle’s crucial center of gravity.

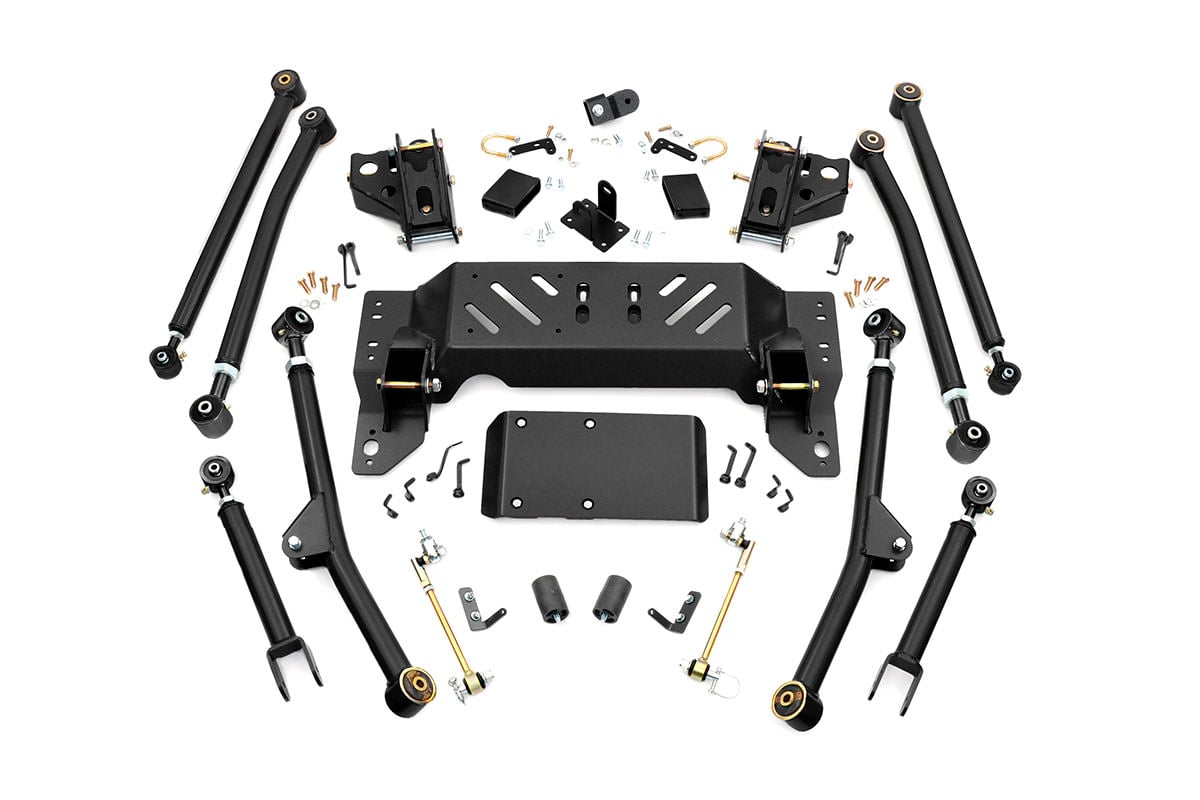

The kit includes adjustable high-clearance X-Flex upper and lower control arms with durable rubber bushings, featuring X-Flex joints.

This lift kit features high-clearance components with a front y-link and rear 4-link control arm design.

This promotes extreme axle flex while keeping pinion angles optimized.

Features:

• Aggressive appearance
• Increased ground clearance
• HD 0.25″ thick crossmember
• Lower control arms feature high clearance design
• Extreme travel long arms keep optimum alignment and give optimum articulation.
• X-Flex control arm features:
• durable OEM style rubber bushings.
• Flex joints feature a massive 2.5″ diameter body and 1.25″ thread.
• Fully greasable.
• Upper joints pivot up to 20 degrees.
• Lower joints pivot up to 35 degrees.

Notes:

• Does NOT fit AWD models.
• Transfer case skid plate will NOT fit models equipped with 249 transfer case.
• Exhaust will have to be cut and rerouted to make sure it is away from the moving components.
• Models equipped with a CV style front driveshaft may result in driveshaft vibration.
• If this occurs, replacing the driveshaft.

Download instructions
