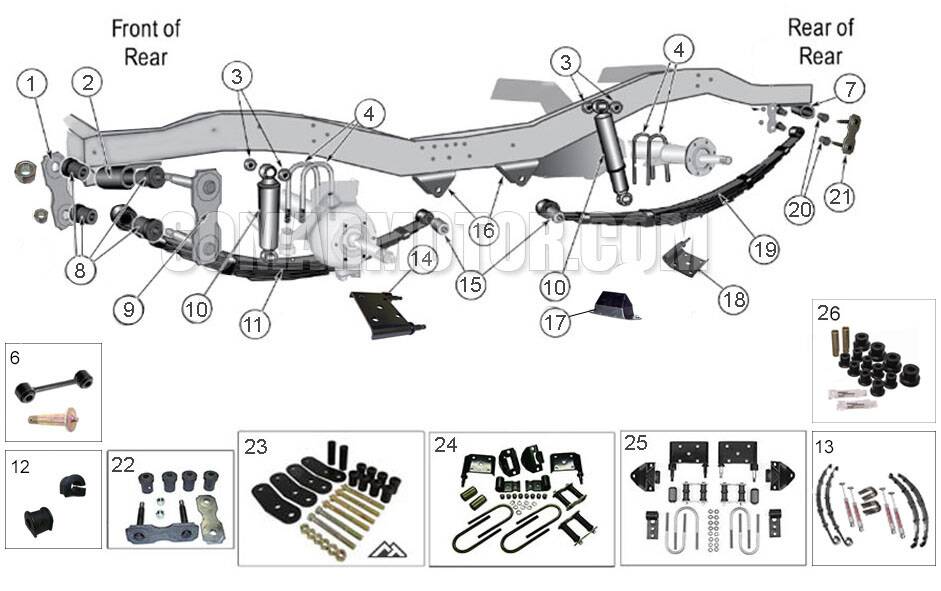

DIAGRAM SUSPENSION – CJ5, CJ7, CJ8

Diagram Part #1

  • Shackle Plate for 76-86 Jeep CJ Series

    Shackle Plate for 76-86 Jeep CJ Series

    SKU: J5357497
    $3.99
    Fits: 1976-1983 Jeep CJ-5. 1976-1986 Jeep CJ-7. 1981-1986 Jeep CJ-8. Front or Rear Shackle Plate; 1 Required Per Shackle.
    Fits:
    • 1976-1983 Jeep CJ-5.
    • 1976-1986 Jeep CJ-7.
    • 1981-1986 Jeep CJ-8.
    • Front or Rear Shackle Plate; 1 Required Per Shackle.
    Add to cart
    Quick View

Diagram Part #2

Diagram Part #3

  • Front or Rear Upper Shock Mounting Bushing for 1942-1986 Jeep CJ Series

    Front or Rear Upper Shock Mounting Bushing for 1942-1986 Jeep CJ Series

    SKU: J0637936
    $1.99
    Fits: 1941-1945 Willys MB. 1950-1952 Willys M38. 1952-1963 Willys M38-A1. 1945-1949 Jeep CJ-2A. 1948-1953 Jeep CJ-3A. 1953-1968 Jeep CJ-3B. 1955-1983…
    Fits:
    • 1941-1945 Willys MB.
    • 1950-1952 Willys M38.
    • 1952-1963 Willys M38-A1.
    • 1945-1949 Jeep CJ-2A.
    • 1948-1953 Jeep CJ-3A.
    • 1953-1968 Jeep CJ-3B.
    • 1955-1983 Jeep CJ-5.
    • 1955-1975 Jeep CJ-6.
    • 1976-1986 Jeep CJ-7.
    • 1981-1986 Jeep CJ-8.
    • 1963-1991 Jeep SJ & J-Series.
    • 1967-1971 Jeep C101 Commando.
    • 1972-1973 Jeep C104 Commando.
    • 1947-1965 Jeep Pickup.
    • 1946-1964 Jeep Station Wagon.
    • 1948-1963 Jeep Sedan Delivery.
    • Front or Rear Shock Bushing; 2 Required Per Eye.
    Add to cart
    Quick View

Diagram Part #4

  • Front Leaf Spring U-Bolt Kit for 1955-1995 Jeep CJ Series & Wrangler YJ

    Front Leaf Spring U-Bolt Kit for 1955-1995 Jeep CJ Series & Wrangler YJ

    SKU: 8130370HD
    $7.99
    Fits Jeep: 1987-1995 Jeep Wrangler (YJ); Front; 2 Required. Fits Vintage Jeep: 1976-1983 Jeep CJ-5; Front; 1 Required. 1976-1986 Jeep…
    Fits Jeep:
    • 1987-1995 Jeep Wrangler (YJ); Front; 2 Required.
    Fits Vintage Jeep:
    • 1976-1983 Jeep CJ-5; Front; 1 Required.
    • 1976-1986 Jeep CJ-7; Front; 1 Required.
    • 1981-1986 Jeep CJ-8; Front; 1 Required.
    • 3.75″ Wide U-Bolt; Includes Washers and Nuts.
    Add to cart
    Quick View
  • Leaf Spring U-Bolt Kit for 1955-1987 Jeep CJ & Wrangler YJ

    Leaf Spring U-Bolt Kit for 1955-1987 Jeep CJ & Wrangler YJ

    SKU: 8130369HD
    $7.99
    Fits: 1987-1995 Jeep Wrangler (YJ); Front; 2 Required. 1987-1995 Jeep Wrangler (YJ) w/ Dana 35 Rear Axle; Rear - 4…
    Fits:
    • 1987-1995 Jeep Wrangler (YJ); Front; 2 Required.
    • 1987-1995 Jeep Wrangler (YJ) w/ Dana 35 Rear Axle; Rear - 4 Required.
    Fits Vintage Jeep:
    • 1976-1983 Jeep CJ-5; Front; 3 Required.
    • 1976-1983 Jeep CJ-5; Rear; 4 Required.
    • 1976-1986 Jeep CJ-7; Front; 3 Required.
    • 1976-1986 Jeep CJ-7; Rear; 4 Required.
    • 1981-1986 Jeep CJ-8; Front; 3 Required.
    • 1981-1986 Jeep CJ-8; Rear; 4 Required.
    • 3.06″ Wide U-Bolt; Includes Washers and Nuts.
    Add to cart
    Quick View
  • U-Bolt with Nut & Washers 1/2″ Diameter 8″ Long for 1976-1986 Jeep CJ-5, CJ-7 & CJ-8

    U-Bolt with Nut & Washers 1/2″ Diameter 8″ Long for 1976-1986 Jeep CJ-5, CJ-7 & CJ-8

    SKU: 999210
    $7.01
    Fits: 1952-1963 Willys M38-A1 w/ Dana 44 Rear Axle. 1948-1953 Jeep CJ-3A w/ Dana 44 Rear Axle. 1953-1968 Jeep CJ-3B w/ Dana 44…
    Fits:
    • 1952-1963 Willys M38-A1 w/ Dana 44 Rear Axle.
    • 1948-1953 Jeep CJ-3A w/ Dana 44 Rear Axle.
    • 1953-1968 Jeep CJ-3B w/ Dana 44 Rear Axle.
    • 1955-1975 Jeep CJ-5 w/ Dana 44 Rear Axle.
    • 1955-1975 Jeep CJ-6 w/ Dana 44 Rear Axle.
    • 1986 Jeep CJ-7 w/ Dana 44 Rear Axle.
    • 1986 Jeep CJ-8 w/ Dana 44 Rear Axle.
    • 1972-1973 Jeep C104 Commando w/ Dana 44 Rear Axle.
    • 1/2″ Threads; Includes Washers and Nuts.
    Add to cart
    Quick View

Diagram Part #6

  • Front Sway Bar Link for 1976-1986 Jeep” CJ Series

    Front Sway Bar Link for 1976-1986 Jeep” CJ Series

    SKU: J5364122
    $14.99
    Fits: 1976-1983 Jeep CJ-5 w/ Standard Duty Suspension. 1976-1986 Jeep CJ-7 w/ Standard Duty Suspension. 1981-1986 Jeep CJ-8 w/ Standard Duty Suspension.…
    Fits:
    • 1976-1983 Jeep CJ-5 w/ Standard Duty Suspension.
    • 1976-1986 Jeep CJ-7 w/ Standard Duty Suspension.
    • 1981-1986 Jeep CJ-8 w/ Standard Duty Suspension.
    • Front Left or Right Stabilizer Bar Link; Measures 6″ From Eye to Eye.
    Add to cart
    Quick View
  • Front Sway Bar Link Mounting Pin for 76-95 Jeep CJ Series & Wrangler YJ

    Front Sway Bar Link Mounting Pin for 76-95 Jeep CJ Series & Wrangler YJ

    SKU: J5352787
    $11.99
    Fits Jeep: 1987-1995 Jeep Wrangler (YJ). Fits Vintage Jeep: 1976-1983 Jeep CJ-5. 1976-1986 Jeep CJ-7. 1981-1986 Jeep CJ-8. 1976-1991 Jeep…
    Fits Jeep:
    • 1987-1995 Jeep Wrangler (YJ).
    Fits Vintage Jeep:
    • 1976-1983 Jeep CJ-5.
    • 1976-1986 Jeep CJ-7.
    • 1981-1986 Jeep CJ-8.
    • 1976-1991 Jeep SJ & J-Series.
    • Front Left or Right Stabilizer Bar Link Pin.
    Add to cart
    Quick View

Diagram Part #7

Diagram Part #8

  • Leaf Spring Bushing for 76-86 Jeep CJ7

    Leaf Spring Bushing for 76-86 Jeep CJ7

    SKU: 5355966
    $1.99
    Fits: 1976-1983 Jeep CJ-5. 1976-1986 Jeep CJ-7. 1981-1986 Jeep CJ-8. Front Leaf Spring Bushing; 8 Required (2 Per Eye).
    Fits:
    • 1976-1983 Jeep CJ-5.
    • 1976-1986 Jeep CJ-7.
    • 1981-1986 Jeep CJ-8.
    • Front Leaf Spring Bushing; 8 Required (2 Per Eye).
    Add to cart
    Quick View

Diagram Part #9

Diagram Part #10

Diagram Part #11

Diagram Part #12

  • Front Sway Bar Cushion for 76-80 Jeep CJ Series with .8125″ I.D.

    Front Sway Bar Cushion for 76-80 Jeep CJ Series with .8125″ I.D.

    SKU: J5355315
    $4.99
    Fits: 1976-1980 Jeep CJ-5 w/ .8125″ Stabilizer Bar. 1976-1980 Jeep CJ-7 w/ .8125″ Stabilizer Bar. 1976-1984 Jeep SJ & J-Series w/ .8125″ Stabilizer…
    Fits:
    • 1976-1980 Jeep CJ-5 w/ .8125″ Stabilizer Bar.
    • 1976-1980 Jeep CJ-7 w/ .8125″ Stabilizer Bar.
    • 1976-1984 Jeep SJ & J-Series w/ .8125″ Stabilizer Bar.
    • Front Stabilizer Bar Bushing For .8125″ Sway Bar; .78″ Inside Diameter.
    Add to cart
    Quick View
  • Stabilizer Bar Cushion For 80-86 Jeep CJ .875″ Inner Diameter.

    Stabilizer Bar Cushion For 80-86 Jeep CJ .875″ Inner Diameter.

    SKU: 5361674
    $3.99
    Fits: 1980-1983 Jeep CJ-5 w/ .875″ Stabilizer Bar. 1980-1986 Jeep CJ-7 w/ .875″ Stabilizer Bar. 1981-1986 Jeep CJ-8 w/ .875″ Stabilizer Bar.
    Fits:
    • 1980-1983 Jeep CJ-5 w/ .875″ Stabilizer Bar.
    • 1980-1986 Jeep CJ-7 w/ .875″ Stabilizer Bar.
    • 1981-1986 Jeep CJ-8 w/ .875″ Stabilizer Bar.
    Add to cart
    Quick View

Diagram Part #14

Diagram Part #15

  • FRT Main Eye Rubber Spring Bushing For 76-86 CJ

    FRT Main Eye Rubber Spring Bushing For 76-86 CJ

    SKU: 5353851
    $33.30
    Fits: 1976-1983 Jeep CJ5 1976-1986 Jeep CJ7 1981-1986 Jeep CJ8 Front Left or Right Leaf Spring Bushing; Pivot End (Rear…
    Fits:
    • 1976-1983 Jeep CJ5
    • 1976-1986 Jeep CJ7
    • 1981-1986 Jeep CJ8
    • Front Left or Right Leaf Spring Bushing; Pivot End (Rear Eye); OD: 1.507″, ID: .572″, Length: 2.9″.
    Add to cart
    Quick View

Diagram Part #16

Diagram Part #17

  • Axle Snubber for 1955-1986 Jeep CJ Series

    Axle Snubber for 1955-1986 Jeep CJ Series

    SKU: J5355483
    $5.99
    Fits: 1976-1983 Jeep CJ-5. 1976-1986 Jeep CJ-7. 1981-1986 Jeep CJ-8. 1976-1991 Jeep SJ & J-Series. Front or Rear Jounce Bumper
    Fits:
    • 1976-1983 Jeep CJ-5.
    • 1976-1986 Jeep CJ-7.
    • 1981-1986 Jeep CJ-8.
    • 1976-1991 Jeep SJ & J-Series.
    • Front or Rear Jounce Bumper
    Read more
    Quick View

Diagram Part #18

Diagram Part #19

Diagram Part #20

  • Rear Shackle Bushing for 76-86 Jeep CJ Series

    Rear Shackle Bushing for 76-86 Jeep CJ Series

    SKU: J5355841
    $0.99
    Fits: 1976-1983 Jeep CJ-5 1976-1986 Jeep CJ-7 1981-1986 Jeep CJ-8 1966-1971 Jeep C101 Commando 1972-1973 Jeep C104 Commando Rear Leaf…
    Fits:
    • 1976-1983 Jeep CJ-5
    • 1976-1986 Jeep CJ-7
    • 1981-1986 Jeep CJ-8
    • 1966-1971 Jeep C101 Commando
    • 1972-1973 Jeep C104 Commando
    • Rear Leaf Spring Shackle Bushing; 8 Required (2 Per Eye); 1″ Bushing.
    Add to cart
    Quick View

Diagram Part #21

Diagram Part #22

  • Leaf Spring Shackle for 1976-1986 Jeep CJ Series

    Leaf Spring Shackle for 1976-1986 Jeep CJ Series

    SKU: 5357499K
    $14.99
    Fits: 1976-1983 Jeep CJ-5. 1976-1986 Jeep CJ-7. 1981-1986 Jeep CJ-8. Rear Shackle Kit; 2 Required; Includes 2 Shackle Plates, 4…
    Fits:
    • 1976-1983 Jeep CJ-5.
    • 1976-1986 Jeep CJ-7.
    • 1981-1986 Jeep CJ-8.
    • Rear Shackle Kit; 2 Required; Includes 2 Shackle Plates, 4 Bushings and 2 Lock Nuts.
    Add to cart
    Quick View
  • Leaf Spring Shackle for 1976-1986 Jeep CJ Series

    Leaf Spring Shackle for 1976-1986 Jeep CJ Series

    SKU: 5357620K
    $17.99
    Fits: 1976-1983 Jeep CJ-5. 1976-1986 Jeep CJ-7. 1981-1986 Jeep CJ-8. Front Shackle Kit; 2 Required; Includes 2 Shackle Plates, 4…
    Fits:
    • 1976-1983 Jeep CJ-5.
    • 1976-1986 Jeep CJ-7.
    • 1981-1986 Jeep CJ-8.
    • Front Shackle Kit; 2 Required; Includes 2 Shackle Plates, 4 Bushings and 2 Lock Nuts.
    Add to cart
    Quick View

Diagram Part #23

Diagram Part #24

Diagram Part #25

  • Leaf Spring Mounting Kit For 76-83 Jeep CJ-5, 76-86 Jeep CJ-7.

    Leaf Spring Mounting Kit For 76-83 Jeep CJ-5, 76-86 Jeep CJ-7.

    SKU: 5359011K
    FREE SHIPPING
    $147.99
    Fits: 1976-1983 Jeep CJ-5. 1976-1986 Jeep CJ-7. 1981-1986 Jeep CJ-8. Complete Front Leaf Spring Mounting Kit; Includes 2 Shackle and…
    Fits:
    • 1976-1983 Jeep CJ-5.
    • 1976-1986 Jeep CJ-7.
    • 1981-1986 Jeep CJ-8.
    • Complete Front Leaf Spring Mounting Kit; Includes 2 Shackle and 2 Pivot Brackets, Left & Right Leaf Spring Plates, 2 Shackle Kits, 2 Pivot Bushings and U-Bolts w/ Hardware.
    Add to cart
    Quick View

Diagram Part #26
