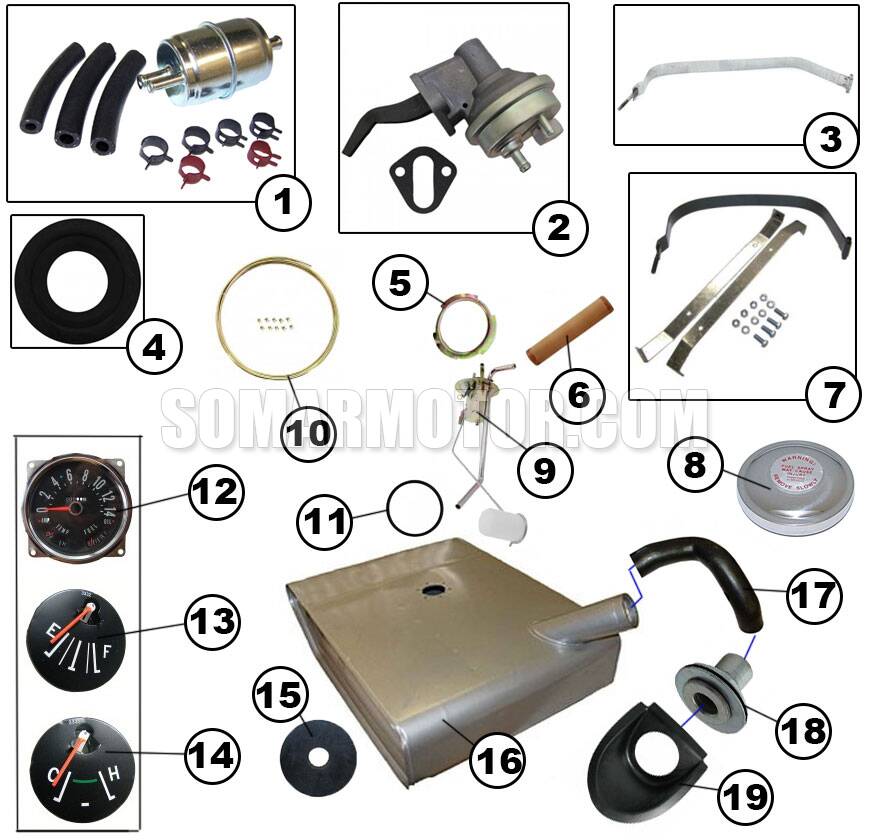

DIAGRAM FUEL - CJ-5 EARLY (1955-1975)

Diagram Part #1

  • Fuel Filter for 1974-1986 Jeep CJ Series with 2.5L & 4.2L Engines & 1987-1990 Wrangler YJ with 4.2L Engine

    Fuel Filter for 1974-1986 Jeep CJ Series with 2.5L & 4.2L Engines & 1987-1990 Wrangler YJ with 4.2L Engine

    SKU: J8129383
    $9.99
    Fits Jeep: 1987-1990 Jeep Wrangler (YJ) w/ 4.2L engine. Fits Vintage Jeep: 1980-1983 Jeep CJ-5 w/ GM 2.5L engine. 1983 Jeep…
    Fits Jeep:
    • 1987-1990 Jeep Wrangler (YJ) w/ 4.2L engine.
    Fits Vintage Jeep:
    • 1980-1983 Jeep CJ-5 w/ GM 2.5L engine.
    • 1983 Jeep CJ-5 w/ AMC 2.5L engine.
    • 1975-1983 Jeep CJ-5 w/ 4.2L engine.
    • 1975-1981 Jeep CJ-5 w/ 5.0L engine.
    • 1975 Jeep CJ-6 w/ 4.2L or 5.0L engine.
    • 1980-1983 Jeep CJ-7 w/ GM 2.5L engine.
    • 1983-1986 Jeep CJ-7 w/ AMC 2.5L engine.
    • 1976-1986 Jeep CJ-7 w/ 4.2L engine.
    • 1976-1981 Jeep CJ-7 w/ 5.0L engine.
    • 1981-1983 Jeep CJ-8 w/ GM 2.5L engine.
    • 1983-1986 Jeep CJ-8 w/ AMC 2.5L engine.
    • 1981-1986 Jeep CJ-8 w/ 4.2L engine.
    • 1981 Jeep CJ-8 w/ 5.0L engine.
    • 1973-1986 Jeep SJ & J-Series w/ 4.2L engine.
    • 1973-1991 Jeep SJ & J-Series w/ 5.9L engine.
    Add to cart
    Quick View
  • Fuel Filter for 1974-1990 Jeep CJ and Wrangler YJ with 4.2L Engine

    Fuel Filter for 1974-1990 Jeep CJ and Wrangler YJ with 4.2L Engine

    SKU: J3229443
    $6.99
    Fits Jeep: 1987-1990 Jeep Wrangler (YJ) w/ 4.2L engine. Fits Vintage Jeep: 1974-1983 Jeep CJ-5 w/ 4.2L engine. 1974-1975 Jeep CJ-6 w/…
    Fits Jeep:
    • 1987-1990 Jeep Wrangler (YJ) w/ 4.2L engine.
    Fits Vintage Jeep:
    • 1974-1983 Jeep CJ-5 w/ 4.2L engine.
    • 1974-1975 Jeep CJ-6 w/ 4.2L engine.
    • 1976-1986 Jeep CJ-7 w/ 4.2L engine.
    • 1981-1986 Jeep CJ-8 w/ 4.2L engine.
    • Single Inlet, Dual Outlet
    Add to cart
    Quick View

Diagram Part #2

  • Fuel Pump For 1967-1971 Jeep CJ5 &amp CJ6

    Fuel Pump For 1967-1971 Jeep CJ5 &amp CJ6

    SKU: 6416783
    $75.99
    Fits: 1967-1971 Jeep CJ-5 w/ V6-225 engine. 1967-1971 Jeep CJ-6 w/ V6-225 engine. 1967-1971 Jeep C101 Commando w/ V6-225 engine.
    Fits:
    • 1967-1971 Jeep CJ-5 w/ V6-225 engine.
    • 1967-1971 Jeep CJ-6 w/ V6-225 engine.
    • 1967-1971 Jeep C101 Commando w/ V6-225 engine.
    Add to cart
    Quick View
  • Fuel Pump For 1972-1975 Jeep CJ5 &amp CJ6 With V8 ENGINE

    Fuel Pump For 1972-1975 Jeep CJ5 &amp CJ6 With V8 ENGINE

    SKU: 8124460
    $52.99
    Fits: 1971-1975 Jeep CJ-5  w/ 5.0L (V8-304) engine. 1971-1975 Jeep CJ-6 w/ 5.0L (V8-304) engine. 1971-1975 Jeep SJ & J-Series w/ 5.9L…
    Fits:
    • 1971-1975 Jeep CJ-5  w/ 5.0L (V8-304) engine.
    • 1971-1975 Jeep CJ-6 w/ 5.0L (V8-304) engine.
    • 1971-1975 Jeep SJ & J-Series w/ 5.9L (V8-360) engine.
    Add to cart
    Quick View

Diagram Part #3

  • Fuel Tank Strap for 1970-1995 Jeep CJ Series & Wrangler YJ

    Fuel Tank Strap for 1970-1995 Jeep CJ Series & Wrangler YJ

    SKU: J5356651
    $15.99
    Fits: 1991-1995 Jeep Wrangler (YJ); 2 Required. 1987-1990 Jeep Wrangler (YJ) w 20-Gallon Tank; 2 Required. Fits Vintage Jeep: 1970-1983…
    Fits:
    • 1991-1995 Jeep Wrangler (YJ); 2 Required.
    • 1987-1990 Jeep Wrangler (YJ) w 20-Gallon Tank; 2 Required.
    Fits Vintage Jeep:
    • 1970-1983 Jeep CJ-5 w/ Rear-Mounted 15-Gallon Tank; 1 Required.
    • 1970-1975 Jeep CJ-6 w/ Rear-Mounted 15-Gallon Tank; 1 Required.
    • 1976-1986 Jeep CJ-7  w/ 15-Gallon Tank; 1 Required.
    • 1981-1986 Jeep CJ-8 w/ 15-Gallon Tank; 1 Required.
    • Does Not Include Nut (5/16″-18 Threads).
    Read more
    Quick View

Diagram Part #4

  • Fuel Filler Neck Grommet for 1970-1975 Jeep CJ with Rear Mounted Fuel Tank

    Fuel Filler Neck Grommet for 1970-1975 Jeep CJ with Rear Mounted Fuel Tank

    SKU: J0654758
    $7.99
    Fits: 1970-1975 Jeep CJ-5 w/ Rear-Mounted Fuel Tank. 1970-1975 Jeep CJ-6 w/ Rear-Mounted Fuel Tank. 1947-1963 Willys Jeep Pickup. 1948-1950 Jeep Jeepster…
    Fits:
    • 1970-1975 Jeep CJ-5 w/ Rear-Mounted Fuel Tank.
    • 1970-1975 Jeep CJ-6 w/ Rear-Mounted Fuel Tank.
    • 1947-1963 Willys Jeep Pickup.
    • 1948-1950 Jeep Jeepster (VJ).
    • Fuel Filler Neck Grommet; 1.75″ Inner Diameter.
    Add to cart
    Quick View

Diagram Part #5

Diagram Part #6

Diagram Part #7

  • Fuel Tank Strap Kit For 1945-1964 Jeep CJ, 1955-1972 CJ5, CJ6

    Fuel Tank Strap Kit For 1945-1964 Jeep CJ, 1955-1972 CJ5, CJ6

    SKU: CJGTS3
    $90.99
    Fits: 1947-1949 Jeep CJ-2A w/ Under Seat Fuel Tank. 1948-1953 Jeep CJ-3A w/ Under Seat Fuel Tank. 1953-1968 Jeep CJ-3B w/ Under Seat…
    Fits:
    • 1947-1949 Jeep CJ-2A w/ Under Seat Fuel Tank.
    • 1948-1953 Jeep CJ-3A w/ Under Seat Fuel Tank.
    • 1953-1968 Jeep CJ-3B w/ Under Seat Fuel Tank.
    • 1955-1972 Jeep CJ-5 w/ Under Seat Fuel Tank.
    • 1955-1972 Jeep CJ-6 w/ Under Seat Fuel Tank.
    Add to cart
    Quick View
  • Fuel Tank Side Strap Kit for 1972-1990 Jeep CJ and Wrangler YJ

    Fuel Tank Side Strap Kit for 1972-1990 Jeep CJ and Wrangler YJ

    SKU: CJGTSE1
    $26.99
    Fits: 1972-1983 Jeep CJ-5 w/ 15-gallon tank (metal or plastic). 1972-1975 Jeep CJ-6 w/ 15-gallon tank (metal or plastic). 1976-1986 Jeep CJ-7 w/…
    Fits:
    • 1972-1983 Jeep CJ-5 w/ 15-gallon tank (metal or plastic).
    • 1972-1975 Jeep CJ-6 w/ 15-gallon tank (metal or plastic).
    • 1976-1986 Jeep CJ-7 w/ 15-gallon tank (metal or plastic).
    • 1981-1986 Jeep CJ-8 w/ 15-gallon tank (metal or plastic).
    • 1987-1990 Jeep Wrangler (YJ) w/ 15-gallon tank (metal or plastic).
    • Includes 2 Gas Tank End Straps. Goes with Strap 5356651 (Middle), Not Included.
    Add to cart
    Quick View

Diagram Part #8

  • Non-Vented Fuel Cap for 1945-1971 Jeep Vehicles

    Non-Vented Fuel Cap for 1945-1971 Jeep Vehicles

    SKU: J0908593
    $11.99
    Fits: 1950-1952 Willys M38A; Non-Locking. 1952-1957 Willys M38A1; Non-Locking. 1945-1949 Jeep CJ-2A; Non-Locking. 1949-1953 Jeep CJ-3A; Non-Locking. 1953-1968 Jeep CJ-3B;…
    Fits:
    • 1950-1952 Willys M38A; Non-Locking.
    • 1952-1957 Willys M38A1; Non-Locking.
    • 1945-1949 Jeep CJ-2A; Non-Locking.
    • 1949-1953 Jeep CJ-3A; Non-Locking.
    • 1953-1968 Jeep CJ-3B; Non-Locking.
    • 1955-1971 Jeep CJ-5; Non-Locking.
    • 1955-1971 Jeep CJ-6; Non-Locking.
    Add to cart
    Quick View
  • Non-Vented Gas Cap for 1972-1990 Jeep CJ and Wrangler YJ

    Non-Vented Gas Cap for 1972-1990 Jeep CJ and Wrangler YJ

    SKU: 52003768
    $17.99
    Fits Jeep: 1987-1990 Jeep Wrangler (YJ). Fits Vintage Jeep: 1972-1983 Jeep CJ-5. 1972-1975 Jeep CJ-6. 1976-1986 Jeep CJ-7. 1981-1986 Jeep…
    Fits Jeep:
    • 1987-1990 Jeep Wrangler (YJ).
    Fits Vintage Jeep:
    • 1972-1983 Jeep CJ-5.
    • 1972-1975 Jeep CJ-6.
    • 1976-1986 Jeep CJ-7.
    • 1981-1986 Jeep CJ-8.
    • 1981-1991 Jeep SJ & J-Series.
    • Non-Locking, Non-Vented Fuel Filler Cap.
    Add to cart
    Quick View
  • Locking Non-Vented Fuel Cap for 1980-1990 Jeep CJ and Wrangler YJ

    Locking Non-Vented Fuel Cap for 1980-1990 Jeep CJ and Wrangler YJ

    SKU: J5350828
    $20.99
    Fits Jeep: 1987-1990 Jeep Wrangler (YJ). Fits Vintage Jeep: 1980-1983 Jeep CJ-5. 1980-1986 Jeep CJ-7. 1981-1986 Jeep CJ-8. 1980-1991 Jeep…
    Fits Jeep:
    • 1987-1990 Jeep Wrangler (YJ).
    Fits Vintage Jeep:
    • 1980-1983 Jeep CJ-5.
    • 1980-1986 Jeep CJ-7.
    • 1981-1986 Jeep CJ-8.
    • 1980-1991 Jeep SJ & J-Series.
    • Locking; Non-Vented Fuel Filler Cap.
    Add to cart
    Quick View
  • Fuel Cap For 1981-1982 Jeep CJ-5, 1981-1982 Jeep CJ-7

    Fuel Cap For 1981-1982 Jeep CJ-5, 1981-1982 Jeep CJ-7

    SKU: 934197
    $29.99
    Fits: 1981-1982 Jeep CJ-5; Export only. 1981-1982 Jeep CJ-7; Export only. 1981-1982 Jeep CJ-8; Export only. Locking Vented Fuel Filler…
    Fits:
    • 1981-1982 Jeep CJ-5; Export only.
    • 1981-1982 Jeep CJ-7; Export only.
    • 1981-1982 Jeep CJ-8; Export only.
    • Locking Vented Fuel Filler Cap.
    Add to cart
    Quick View

Diagram Part #9

  • Fuel Sending Unit for 1969-1986 Jeep CJ Series with 15 Gallon Fuel Tank

    Fuel Sending Unit for 1969-1986 Jeep CJ Series with 15 Gallon Fuel Tank

    SKU: J5357373
    $32.99
    Fits: 1969-1983 Jeep CJ-5 w/ Rear-Mounted 15-Gallon Tank. 1969-1975 Jeep CJ-6 w/ Rear-Mounted 15-Gallon Tank. 1976-1986 Jeep CJ-7 w/ Rear-Mounted 15-Gallon Tank. 1981-1986…
    Fits:
    • 1969-1983 Jeep CJ-5 w/ Rear-Mounted 15-Gallon Tank.
    • 1969-1975 Jeep CJ-6 w/ Rear-Mounted 15-Gallon Tank.
    • 1976-1986 Jeep CJ-7 w/ Rear-Mounted 15-Gallon Tank.
    • 1981-1986 Jeep CJ-8 w/ Rear-Mounted 15-Gallon Tank.
    • OHMS Empty: 73; OHMS Full: 10.
    Add to cart
    Quick View
  • Gallon Fuel Sending Unit for 1969-1986 Jeep CJ Series

    Gallon Fuel Sending Unit for 1969-1986 Jeep CJ Series

    SKU: 5357373K
    $39.99
    Fits: 1969-1983 Jeep CJ-5 w/ Rear-Mounted 15-Gallon Tank. 1969-1975 Jeep CJ-6 w/ Rear-Mounted 15-Gallon Tank. 1976-1986 Jeep CJ-7 w/ Rear-Mounted 15-Gallon Tank. 1981-1986…
    Fits:
    • 1969-1983 Jeep CJ-5 w/ Rear-Mounted 15-Gallon Tank.
    • 1969-1975 Jeep CJ-6 w/ Rear-Mounted 15-Gallon Tank.
    • 1976-1986 Jeep CJ-7 w/ Rear-Mounted 15-Gallon Tank.
    • 1981-1986 Jeep CJ-8 w/ Rear-Mounted 15-Gallon Tank.
    • Fuel Float (Sending Unit) Kit; Includes Sending Unit, Filter, Lock Ring and Seal.
    Add to cart
    Quick View

Diagram Part #10

Diagram Part #11

Diagram Part #12

Diagram Part #13

  • Clutch Rod for 1972-1975 Jeep CJ

    Clutch Rod for 1972-1975 Jeep CJ

    SKU: J5351302
    $18.99
    Fits: 1972-1975 Jeep CJ-5 w/ 3.8L, 4.2L or 5.0L engine. 1972-1975 Jeep CJ-6 w/ 3.8L, 4.2L or 5.0L engine. 1973-1975 Jeep SJ…
    Fits:
    • 1972-1975 Jeep CJ-5 w/ 3.8L, 4.2L or 5.0L engine.
    • 1972-1975 Jeep CJ-6 w/ 3.8L, 4.2L or 5.0L engine.
    • 1973-1975 Jeep SJ & J-Series w/ 4.2L engine; 18-5/8″ Long.
    • 1973-1988 Jeep SJ & J-Series w/ 5.9L or 6.6L engine; 18-5/8″ Long.
    • Upper Clutch Pedal To Bellcrank Rod.
    Add to cart
    Quick View
  • Clutch Rod for 1976-1986 Jeep CJ Series

    Clutch Rod for 1976-1986 Jeep CJ Series

    SKU: J5364620
    $14.99
    Fits: 1976-1983 Jeep CJ-5 w/ LHD; w/ 4.2L engine. 1976-1981 Jeep CJ-5 w/ 5.0L engine. 1976-1986 Jeep CJ-7 w/ LHD; w/ 4.2L engine.…
    Fits:
    • 1976-1983 Jeep CJ-5 w/ LHD; w/ 4.2L engine.
    • 1976-1981 Jeep CJ-5 w/ 5.0L engine.
    • 1976-1986 Jeep CJ-7 w/ LHD; w/ 4.2L engine.
    • 1976-1981 Jeep CJ-7 w/ 5.0L engine.
    • 1981-1986 Jeep CJ-8 w/ LHD; w/ 4.2L engine.
    • 1981 Jeep CJ-8 w/ 5.0L engine.
    • Clutch Bellcrank To Pedal Shaft Rod; 21-3/4″ Length.
    Add to cart
    Quick View

Diagram Part #14

Diagram Part #15

Diagram Part #16

  • Fuel Tank for 1955-1970 Jeep CJ-5 and CJ-6 with 4-Cylinder Engine

    Fuel Tank for 1955-1970 Jeep CJ-5 and CJ-6 with 4-Cylinder Engine

    SKU: J0912008
    $176.99
    Fits: 1955-1970 CJ-5 w/ 4-134 F-Head engine; w/ 6-Screw Sending Unit. 1955-1970 CJ-6 w/ 4-134 F-Head engine; w/ 6-Screw Sending Unit. Under-Seat…
    Fits:
    • 1955-1970 CJ-5 w/ 4-134 F-Head engine; w/ 6-Screw Sending Unit.
    • 1955-1970 CJ-6 w/ 4-134 F-Head engine; w/ 6-Screw Sending Unit.
    • Under-Seat Fuel Tank; Long Angled Neck; Drain Plug Threads - 1/4″ NPT; Fuel Line Fitting Threads - 7/16″-24; Sending Unit Screw Threads - #8-32.
    Add to cart
    Quick View
  • Plastic Underseat Fuel Tank for 1955-1970 Jeep CJ-5 and CJ-6 with 4-Cylinder Engine

    Plastic Underseat Fuel Tank for 1955-1970 Jeep CJ-5 and CJ-6 with 4-Cylinder Engine

    SKU: 912008PL
    $396.99
    Fits: 1955-1970 Jeep CJ-5 w/ 4-134 F-Head engine. 1955-1970 Jeep CJ-6 w/ 4-134 F-Head engine. Plastic Under-Seat Fuel Tank; Includes Gasket and…
    Fits:
    • 1955-1970 Jeep CJ-5 w/ 4-134 F-Head engine.
    • 1955-1970 Jeep CJ-6 w/ 4-134 F-Head engine.
    • Plastic Under-Seat Fuel Tank; Includes Gasket and Pickup Tube; Designed for Tanks with 6 Screw Sending Unit Mount, Not For Models w/ Lock Ring Style Sending Units.
    Add to cart
    Quick View
  • Gallon Metal Fuel Tank for 1970-1976 Jeep CJ Series

    Gallon Metal Fuel Tank for 1970-1976 Jeep CJ Series

    SKU: J5355314
    $219.99
    Fits: 1970-1976 Jeep CJ-5 w/ 15-Gallon Tank. 1970-1975 Jeep CJ-6 w/ 15-Gallon Tank. 1976 Jeep CJ-7 w/ 15-Gallon Tank. 1972-1973 Jeep C104 Commando.
    Fits:
    • 1970-1976 Jeep CJ-5 w/ 15-Gallon Tank.
    • 1970-1975 Jeep CJ-6 w/ 15-Gallon Tank.
    • 1976 Jeep CJ-7 w/ 15-Gallon Tank.
    • 1972-1973 Jeep C104 Commando.
    Add to cart
    Quick View

Diagram Part #17

Diagram Part #18
